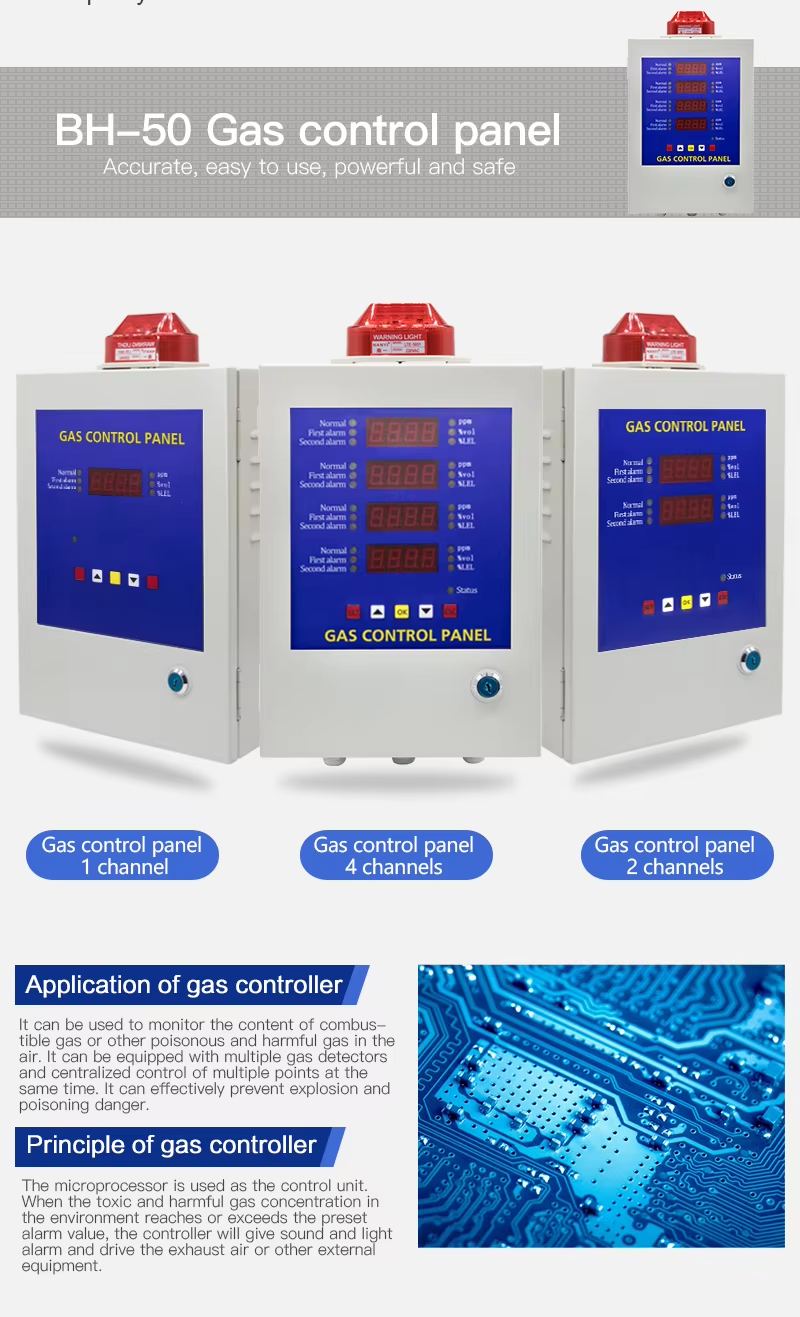

BH-50
BH-50 is a single-channel/two-channel, four-channel (4-20) mA/RS485 transmitter signal input intelligent control system. The product with high stability, high accuracy and high intelligence. The external control port is rich, users can freely choose the type of plug-in transmitter and access port, and On-site inspection and alarm can be performed with simple settings. The system has integrated sound and light alarms, provides a relay normally open control terminal. The system is widely used in applications where toxic gases need to be detected. When the indicator of a certain gas to be tested in the fied exceeds or falls below the set standard, the system will perform a series of alarm actions, such as alarm, exhaust, tripping, etc.
●We provide gas detector OEM/ODM service.
Tel: +86 18702270557
Email: vivian@langolaser.com
1. Independent cell, suitable for free combination
2. Two alarm level with strong function
3. Alarm signal programmable, N/O relay output
4. Intelligent system, zero calibration online
5. Test range, resolution are selective

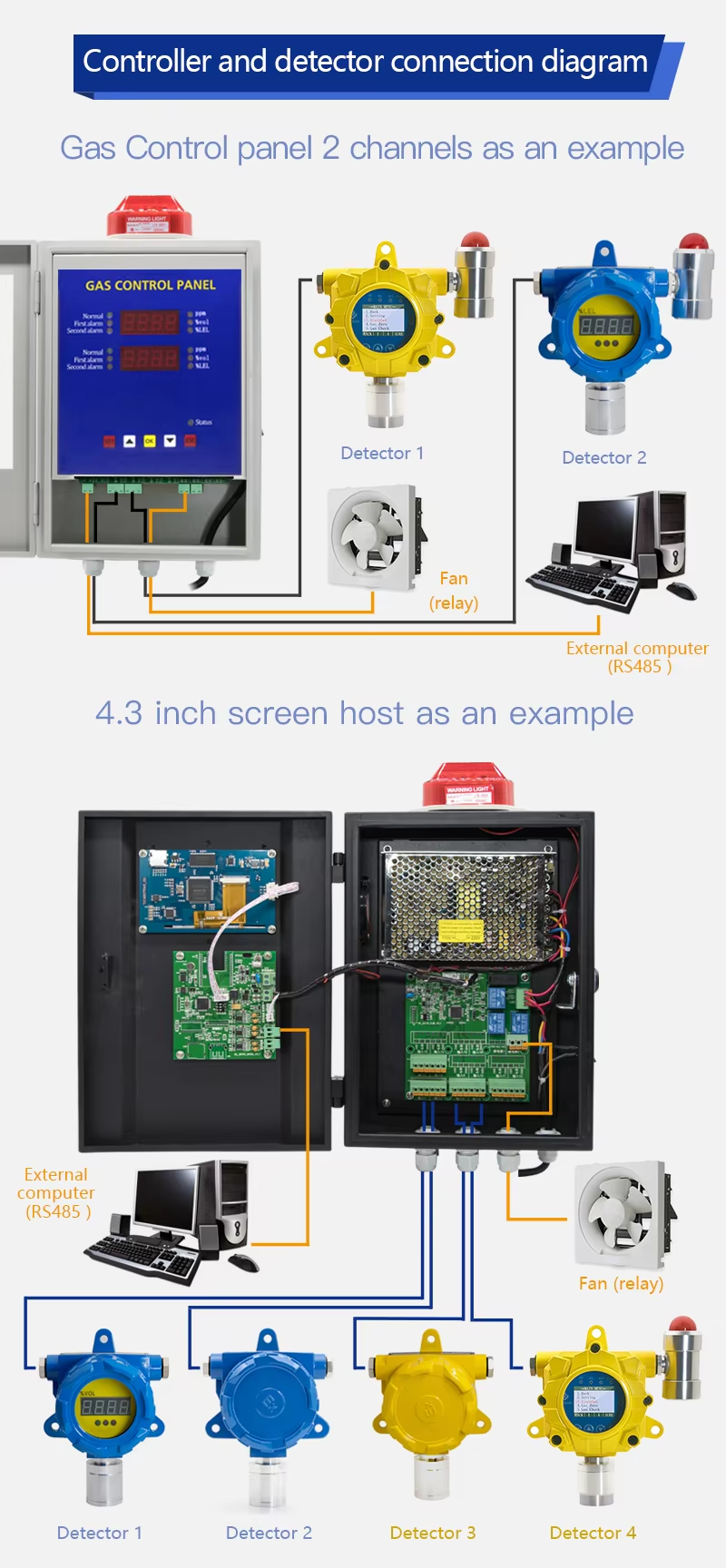

6. 1-channel control one 4-20mA//RS485 transmitter signal input intelligent control system.
7. Bright LED display
8. Real-time clock, works continuously even out of power
9. Accidental alarm report is in preference to device faulty indicator
10. Easy to install and maintenance.

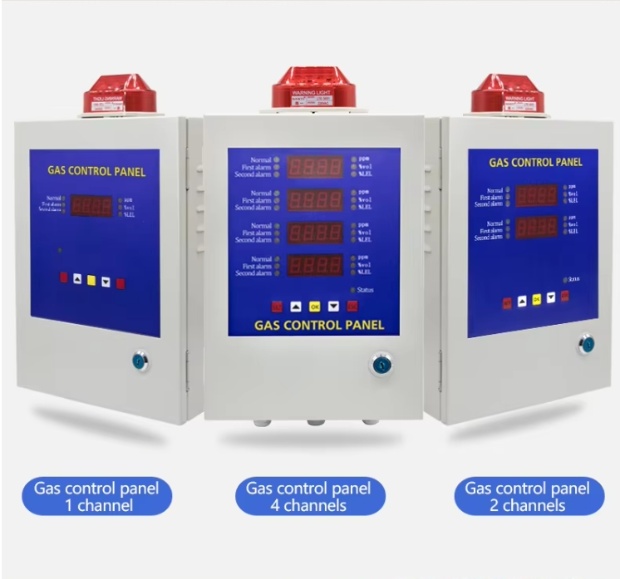

| Product Name | BH-50 Central gas control panel 1~4 ways Gas alarm controller |
| Voltage | 220V±10%, 50Hz |
| Power Consumption | ≤10W (no external device) |
| Humidity | 10~95%RH, non-condensation |
| Signal Input | Two-wire 4-20mA, three-wire 4-20mA, four-wire RS485 |
| Relay | Free contact full load power 1KW |
| Working Temperature | -10℃~50℃ |
| Dimensions | 38 * 21 * 8cm |
| Weight | 3KG |
| Installation Method | Wall-mounted and cabinet type |
| Accuracy | ±5%F.S |
| Output Power | DC24V to detector |
| Cable | ≥RVVP 1.5mm2 *3 |
| Transmit Distance | ≤1000m |
| Common Gases Parameter Listing | ||||
| Description | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
| EX | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
| CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
| SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5000ppm | 1ppm/0.1%VOL | 1000ppm | 2000ppm |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
| HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
| CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
| HF | 0-100ppm | 0.01/0.1ppm | 2ppm | 5ppm |
| C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
| Remark | Not all gases and range are listed, if you need more information, please contact us. We can also provide OEM/ODM services upon request. |
|||
