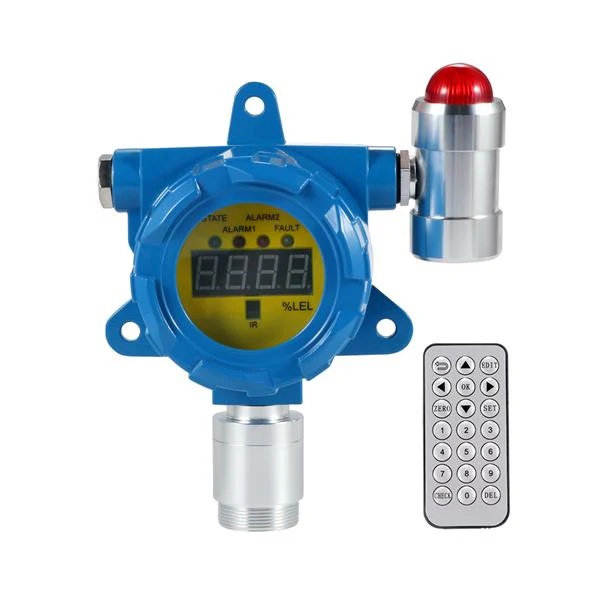

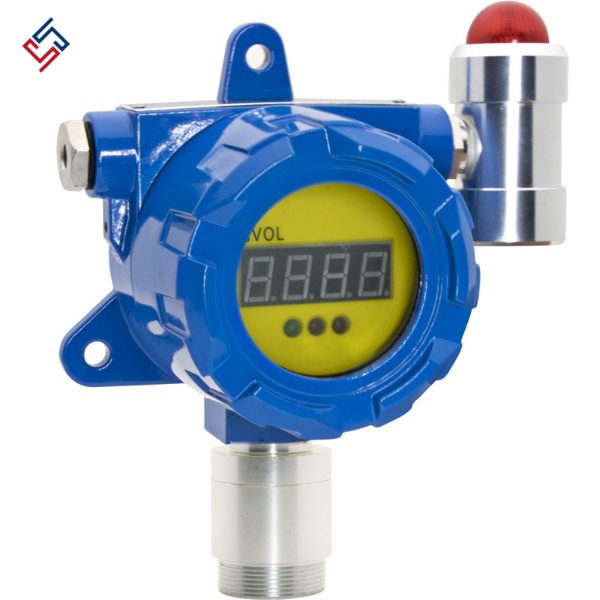

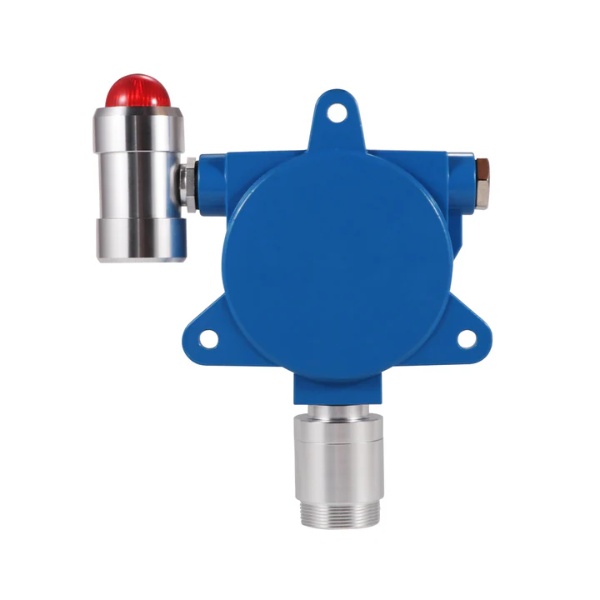

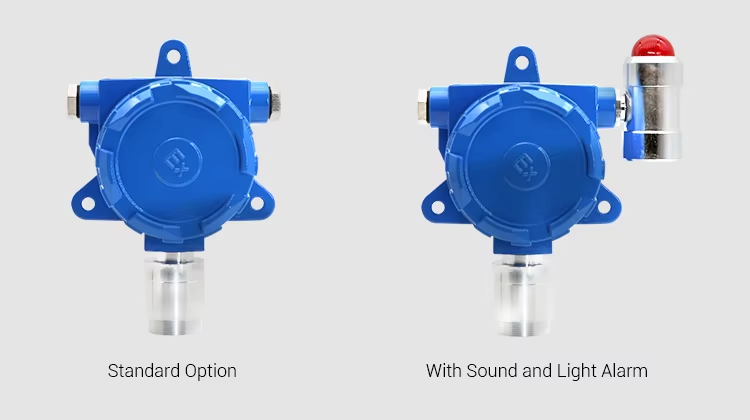

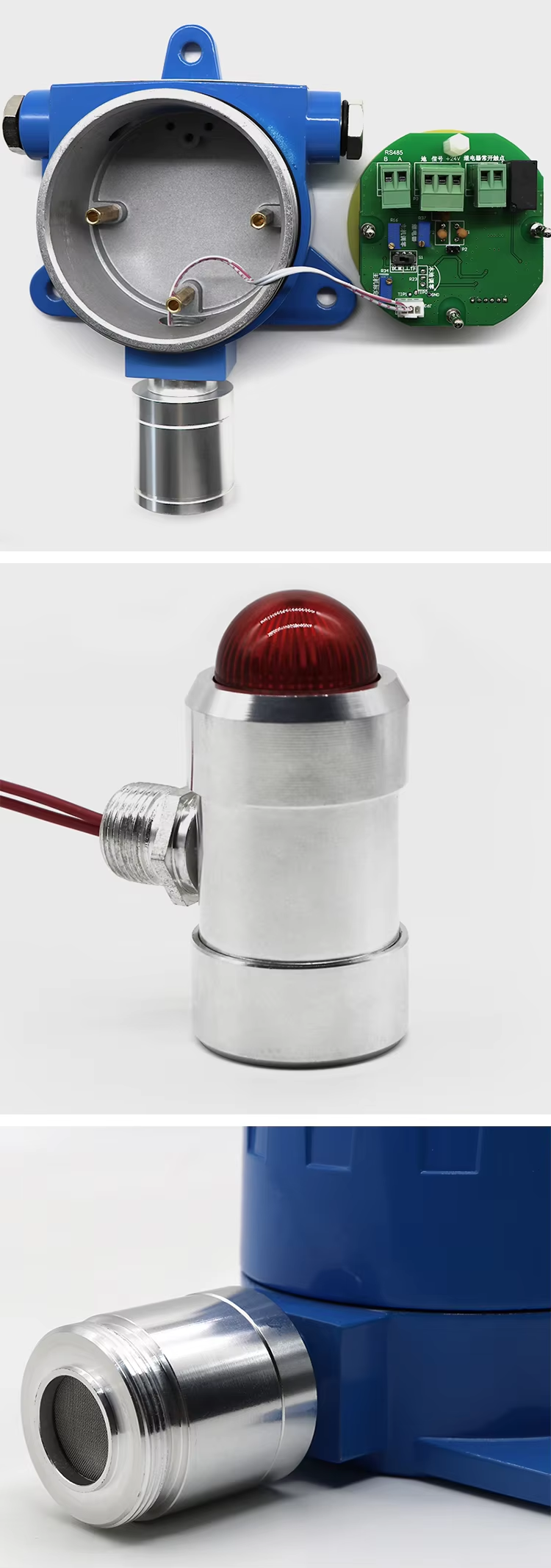

Fixed Multi Gas Detector BH-60
1. Uses catalytic/electrochemical sensors for accurate detection.
2. Explosion-proof (Ex db IIC T6 Gb), safe for hazardous areas.
3. Fast response (≤30s), 4-20mA/RS485 output options.
4. Wide operating range (-20℃~50℃, 0-95%RH).
5. Ideal for refineries, chemical plants, LPG stations.
●We provide gas detector OEM/ODM service.
Tel: +86 18702270557
Email: vivian@langolaser.com

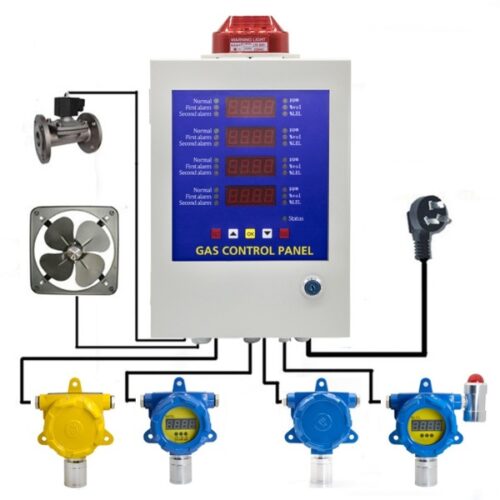

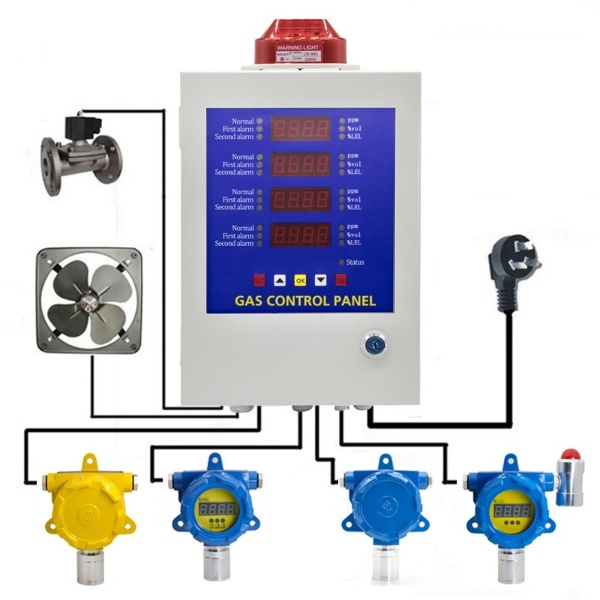

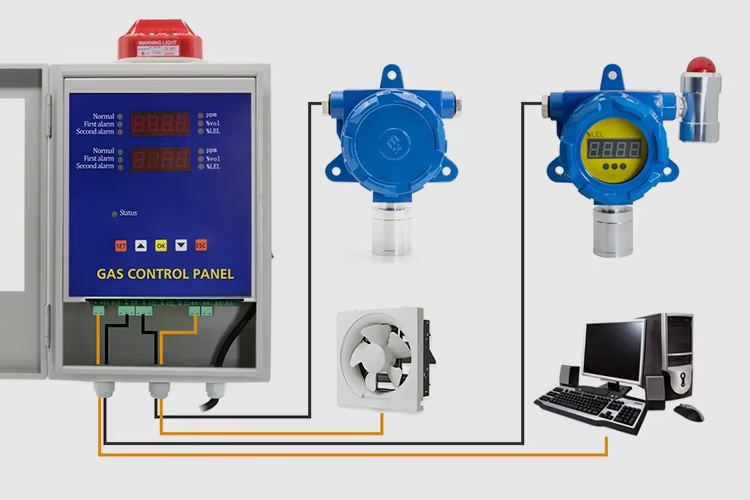

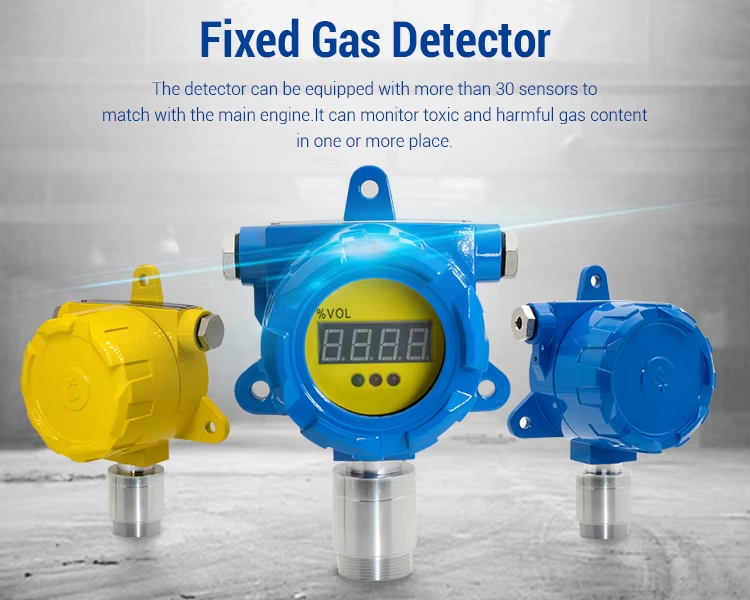

The BH-60 fixed gas detector utilizes advanced catalytic combustion and electrochemical sensor technology to accurately measure and convert gas concentrations into digital signal outputs. Designed for integration with gas control systems, this detector is ideal for monitoring hazardous environments including refineries, chemical plants, LPG stations, boiler rooms, painting facilities, and other industrial locations where gas detection is critical for safety
| Model No. | BH-60 Remote Control Fixed Gas Detector |
| No. of head | 1 |
| Explosion proof grade | Ex db IIC T6 Gb |
| Response time | ≦30S |
| Power supply | DC24V±10% |
| Working temperature | -20℃～50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH(no dew) |
| Contact output | Free contact output, max power 1kW |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |
| Shell material | Aluminum |
| Dimensions | 190x150x95mm（L×W×H） |
| Weight | 2kg |
| Common Gases Parameter Listing | ||||
| Description | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
| EX | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
| CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
| SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5000ppm | 1ppm/0.1%VOL | 1000ppm | 2000ppm |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
| HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
| CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
| HF | 0-100ppm | 0.01/0.1ppm | 2ppm | 5ppm |
| C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
| Remark | Not all gases and range are listed, if you need more information, please contact us. We can also provide OEM/ODM services upon request. |
|||
