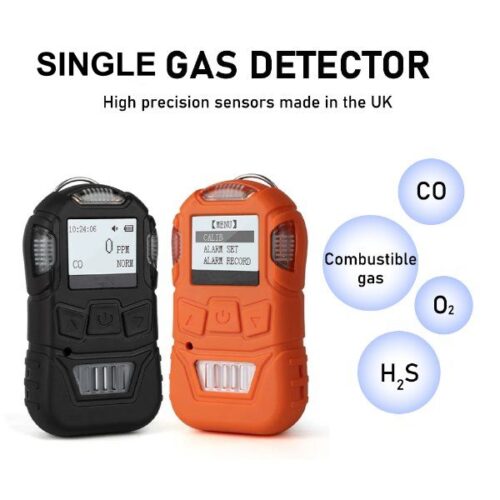

Single Gas Detector (IP67) K-10
1.1000 alarm records storage function
2.Antiskid, waterproof, dust proof, explosion proof
3.Four alarms (Light/sound/ vibration/display)
4.Ultra small ergonomic design
5. 8-bit MCU tech, fast response, compact & durable for harsh environments.
6. Support customized O2, EX, H2S, CO, NO, SO2 and other more than 300 gases
7. Last calibration date storage
●We provide gas detector OEM/ODM service.
Tel: +86 18702270557
Email: vivian@langolaser.com
The K10 portable gas detector is a compact, high-performance device for industrial safety, featuring advanced circuitry and hybrid digital-analog technology for precise detection. Using natural diffusion sampling, it ensures reliable sensitivity and repeatability while supporting O2, EX, H2S, CO, and 300+ other gases with OEM/ODM customization. Its rugged, explosion-proof, waterproof, and dustproof design suits harsh environments, enhanced by 8-bit MCU tech for fast response. Safety alerts include light, sound, vibration, and display alarms, alongside 1,000-record storage and calibration tracking. Ideal for demanding applications, the K10 delivers durability, accuracy, and smart functionality in a portable unit.
| Model NO. | K-10 |
| Sampling method | natural diffusion |
| Accuracy | ≦ 5% F.S. |
| Response time | T＜30s |
| Explosion proof | Ex ib llC T4 Gb, Ex db ib IIC T4 Gb |
| Alarm Method | sound, vibration, light, display |
| Operating Environment | -10℃～55℃ |
| Humidity | ＜95%RH non-condensing |
| Operating voltage | DC3.7V Li battery 1500mAh |
| Working time | ≧8h continuously |
| Charging time | 4h～6h |
| Sensor life | 2 years |
| Protection category | IP67 |
| Weight | about 130g (including battery but without accessories) |
| Dimension | 109mm×60mm×30mm |
| Common Gases Parameter Listing | ||||
| Description | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
| EX | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
| CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
| SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5000ppm | 1ppm/0.1%VOL | 1000ppm | 2000ppm |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
| HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
| CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
| HF | 0-100ppm | 0.01/0.1ppm | 2ppm | 5ppm |
| C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
| Remark | Not all gases and range are listed, if you need more information, please contact us. We can also provide OEM/ODM services upon request. |
|||
Application:
| √ Confined Space | √ Confined Space |
| √ Emergency workers | √ Emergency workers |
| √ Gas engineers | √ Gas engineers |
| √ Hot works | √ Hot works |
| √ Sewage works | √ Sewage works |
| √ Tank cleaning | √ Tank cleaning |
| √ Tunnels | √ Tunnels |
| √ Oil and Gas | √ Oil and Gas |

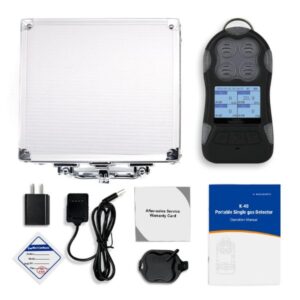

Supplied with:
• 1 x Single gas Detector
• 1 x Calibration cap
• 1 x User manual, 1 x warranty card
• 1 x Charge & cable
Other accessories available: External sample pump
