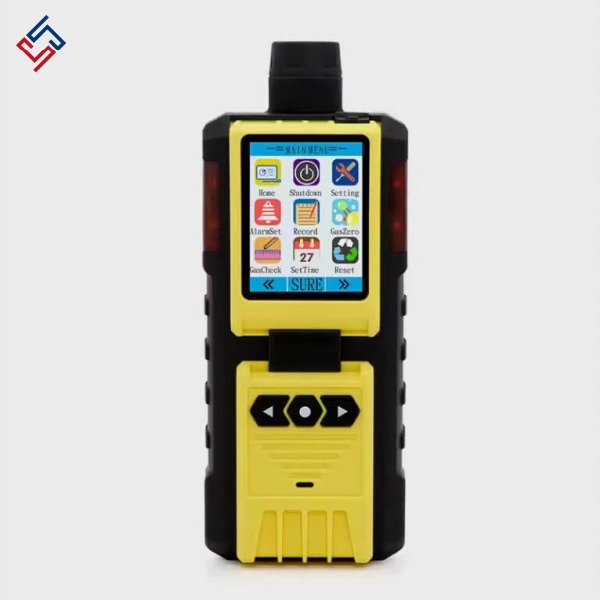

Portable Multi Gas Detector K-600
1.Multi-Gas Detection – Covers combustible (CH₄, C₃H₈, H₂), toxic (NH₃, NO, PH₃, etc.), and O₂ gases.
2.Customizable Configuration – Supports customer-specified gas combinations.
3.High-Accuracy Sampling – Pump-assisted intake with high-sensitivity sensors.
4.32-Bit Smart System – Embedded MCU for fast processing and self-adaptation.
5.Durable Design – IP-rated waterproof/dustproof casing with anti-slip rubber.
6.Data Management – Stores 1200 records, PC-connectable for analysis/printing.
7.Real-Time Display – CSTN color LCD with gas concentration curves.
8.Compact & Portable – Lightweight for field use.
9.Explosion-Proof – Certified safe for hazardous environments.
●We provide gas detector OEM/ODM service.
Tel: +86 18702270557
Email: vivian@langolaser.com
The K-600 portable gas detector features advanced pump sampling and high-sensitivity sensors for detecting combustible (CH₄/H₂), toxic (NH₃/SO₂), and O₂ gases. Its 32-bit MCU ensures reliable operation while the IP-rated explosion-proof housing provides durability. With 1200-data storage, CSTN display, and gas curve analysis, it’s ideal for industrial safety, environmental monitoring, and chemical plant applications.
| Model No. | K600 |
| Gas sampling method | Gas pump sampling |
| Accuracy | ≦±5% F.S. |
| Response Time | ≦30s |
| Indication | LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state. |
| Working environment | -20℃～50℃, ＜95%RH (no dew) |
| Power Source | DC3.7V Li-on battery, 3200mAh |
| Charging time | 6h~8h |
| Working time | ≧8h continuously (without alarming) |
| Gas Sensor Life | 2 years |
| Explosion-proof grade | Ex ib llC T4 Gb |
| Weight | Appr. 400g (with battery) |

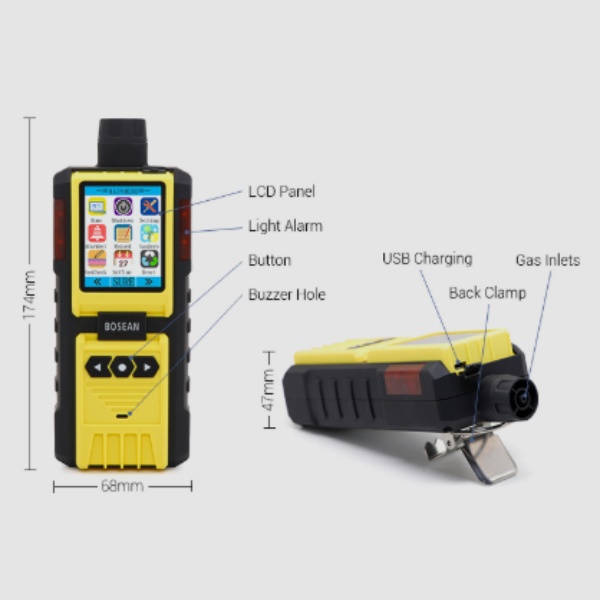

| Dimensions | 130mm×67mm×30mm(L × W × H) |
| Common Gases Parameter Listing | ||||
| Description | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
| EX | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
| CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
| SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5000ppm | 1ppm/0.1%VOL | 1000ppm | 2000ppm |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
| HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
| CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
| HF | 0-100ppm | 0.01/0.1ppm | 2ppm | 5ppm |
| C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
| Remark | Not all gases and range are listed, if you need more information, please contact us. We can also provide OEM/ODM services upon request. |
|||
Application:
1). Industrial Safety (Oil & Gas, Chemical Plants)
2). Medical & Laboratories equipment
3). Water Treatment
4). Mining Operations
5). Confined Space Entry (Construction, Sewers, Tanks, pipeline)
6). Fire & Combustion Safety
7). Marine & Offshore Rigs

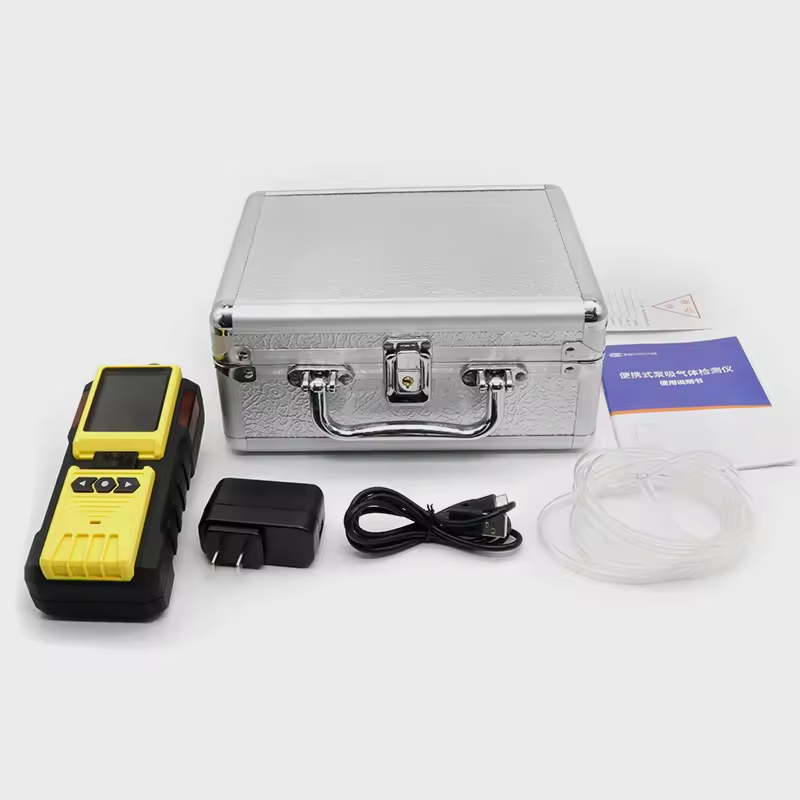

• 1 x multi-gas Detector

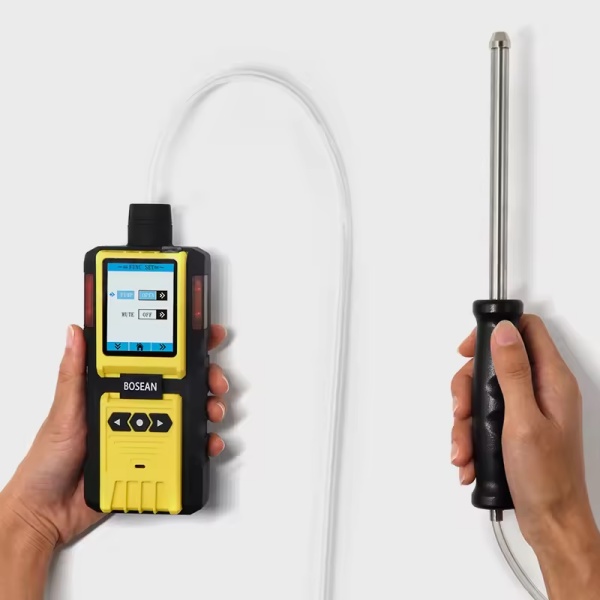

• 1 x tube
• 1 x User manual
• 1 x warranty card
• 1 x Charge adopter
• Communications cable
Other accessories available: External sample pump
