KG-60-S4

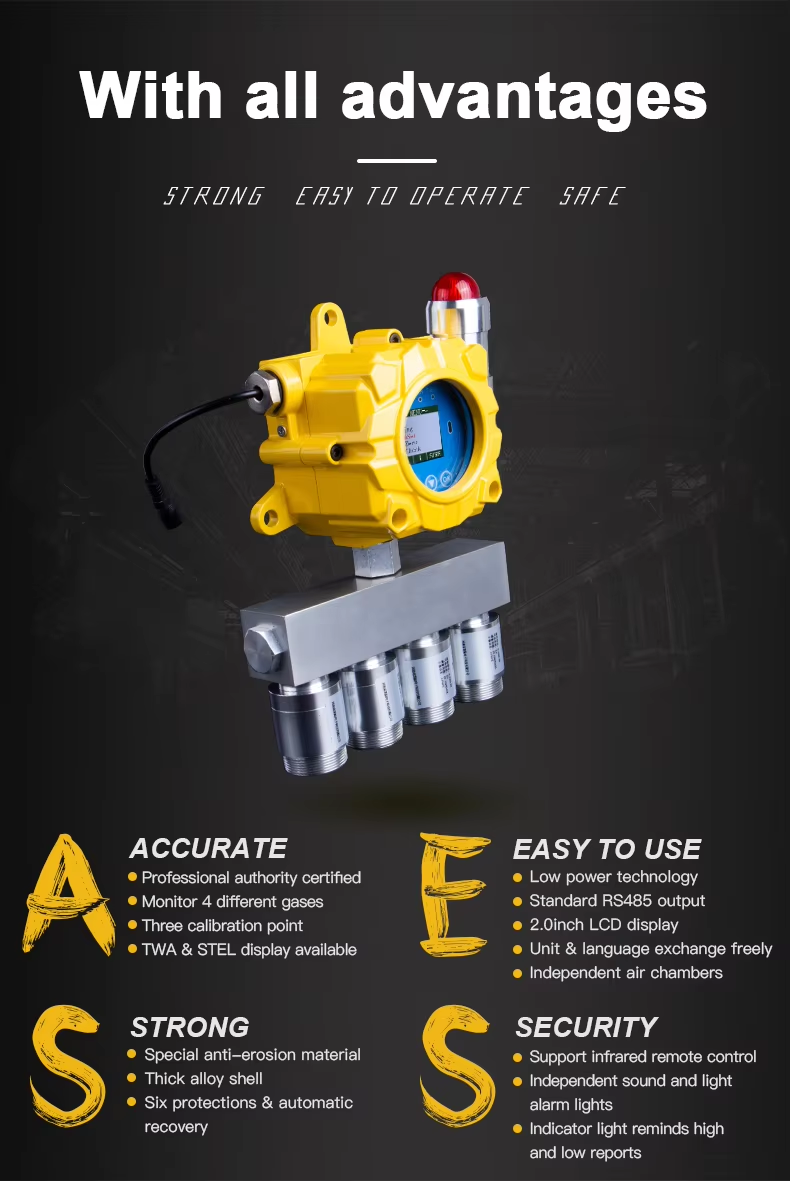

1.Fixed-type detector capable of continuously monitoring four gases simultaneously: flammable gas, oxygen, carbon monoxide, and hydrogen sulfide.

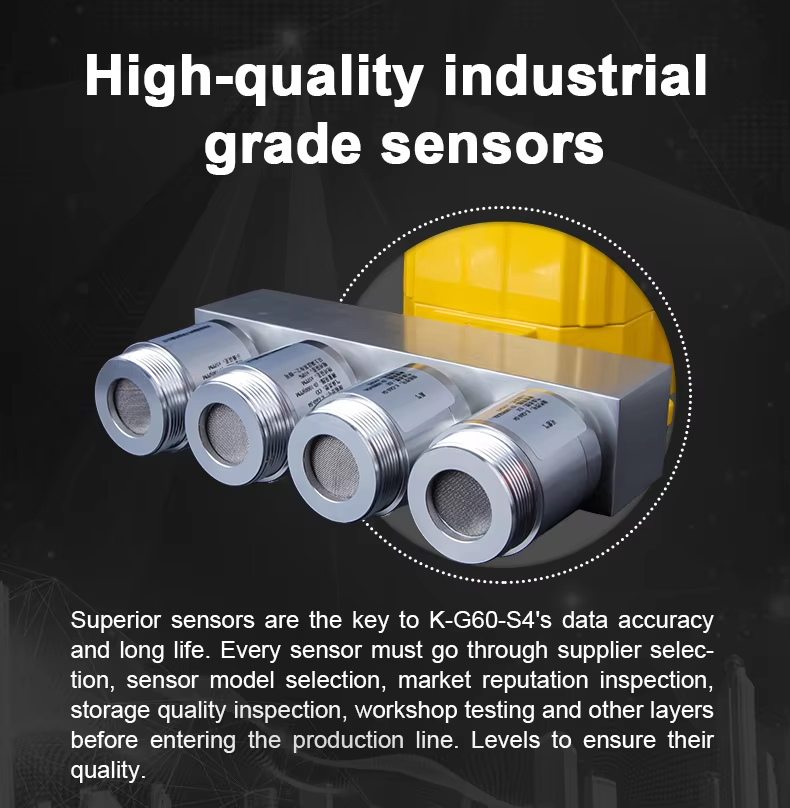

2. Using natural diffusion for gas concentration detection with high-precision imported sensors (electrochemical, catalytic combustion, infrared, or PID).
3. Features excellent sensitivity and repeatability, with embedded micro-control technology for reliable operation.
4. Equipped with an LCD screen to show gas concentration levels for easy monitoring.

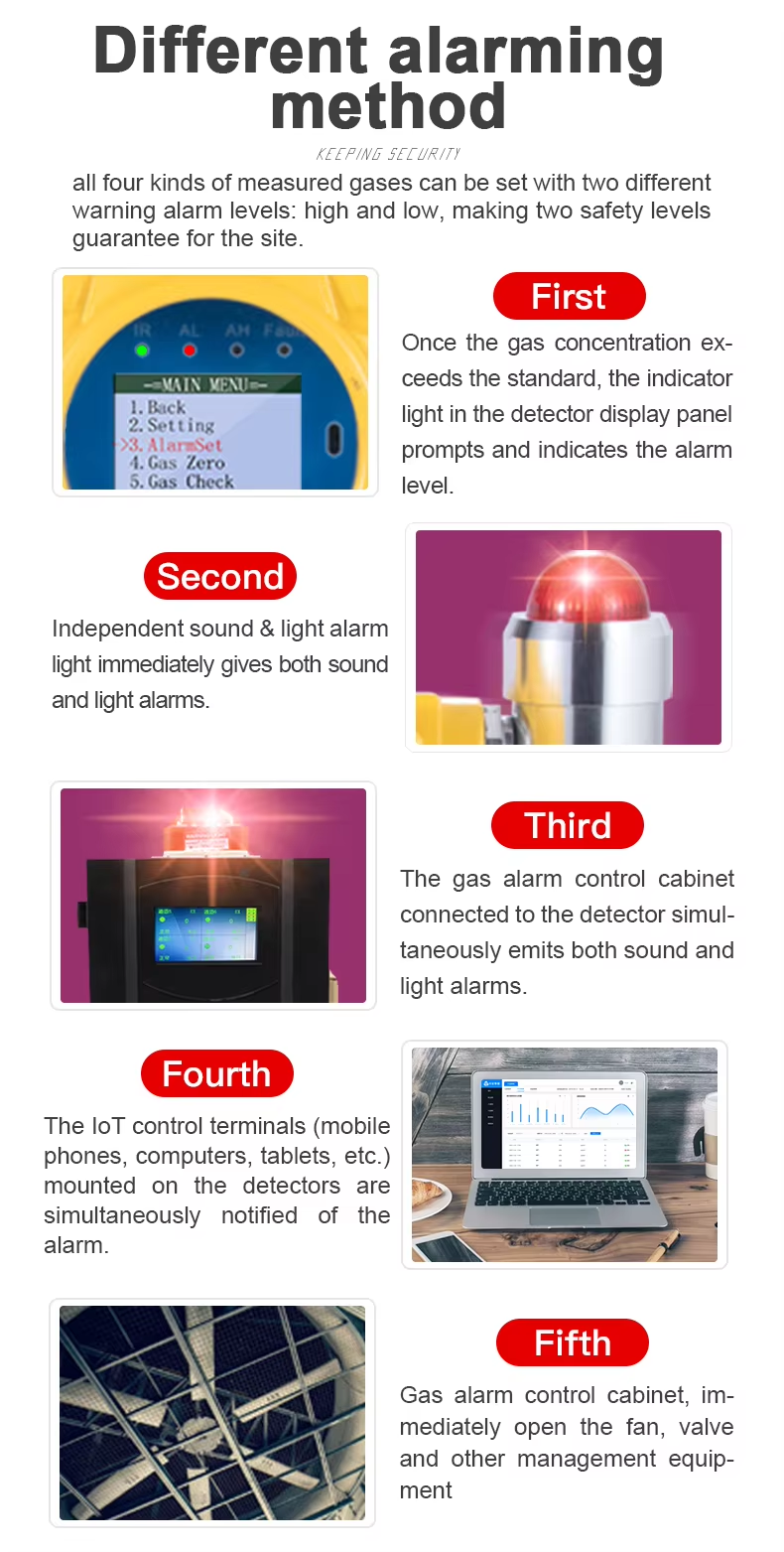

5. Triggers sound and light alarms or activates exhaust systems when gas levels exceed preset thresholds.

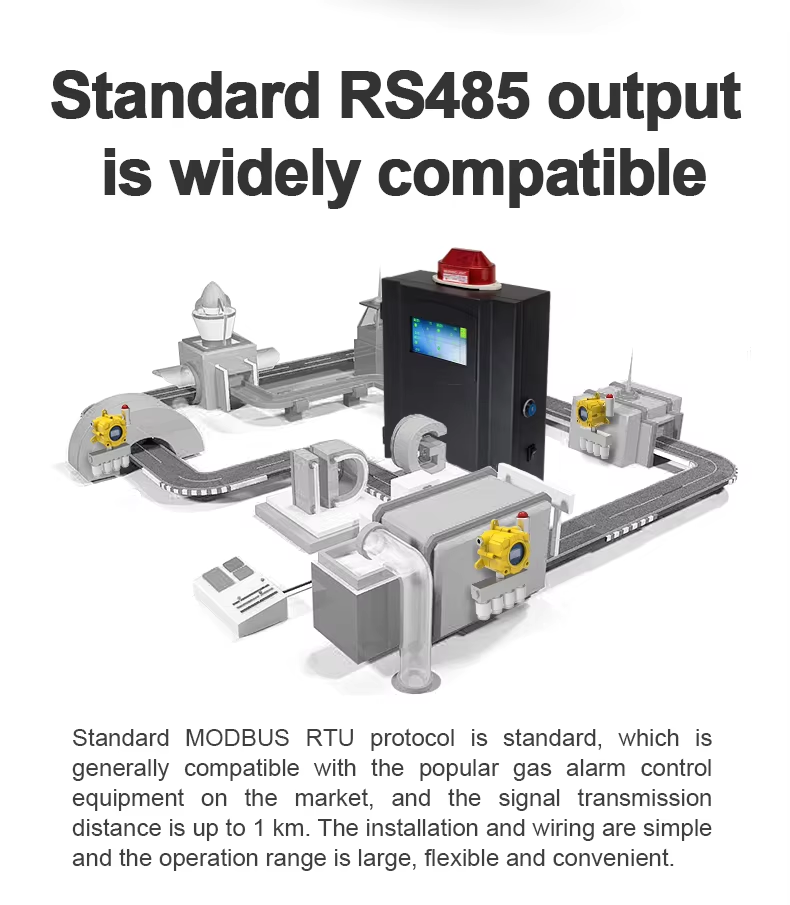

6. Supports RS485 digital signal interface for integration with factory computer software.
7.Suitable for petroleum, chemical, fire protection, and other environments requiring gas detection.
8. Boasts advanced performance, ranking among the top domestic gas detectors.
●We provide gas detector OEM/ODM service.
Tel: +86 18702270557
Email: vivian@langolaser.com
KG-60-S4 is our heavy-duty 4-gas detector for continuous detection to ensure wellness and safety in confined work spaces, industrial operations, oil and gas, and manufacturing type of environments. Also useful in water purification, treatment facilities, chemical plants, high-technology manufacturing, silos, underground operations, maritime, tank, silos, and other confined spaces where ventilation can be limited. This unit tracks the traditional 4 gases comprising O2, CO, EX LEL, and H2S is required for the paramount safety of personnel. The 4-gas meter comes with high and low alarm settings that simultaneously trigger relays to control and trigger power equipment such as fan control, ventilation or additional alarms, sirens, or control panel switching. Additional features include a remote control up to 8 meters and relay alarm-triggered switches to control fans, pumps, or additional alarms.
| Model No. | K-G60–S4 Remote Control Fixed Gas Detector |
| No. of head | 2/3/4 for option |
| Explosion proof grade | Ex db IIC T6 Gb |
| Response time | <30S |
| Power supply | DC24V±15% |
| Working temperature | -20℃~50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH (no dew) |
| Contact output | 2 x relay contact output, max power 50W each relay |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |

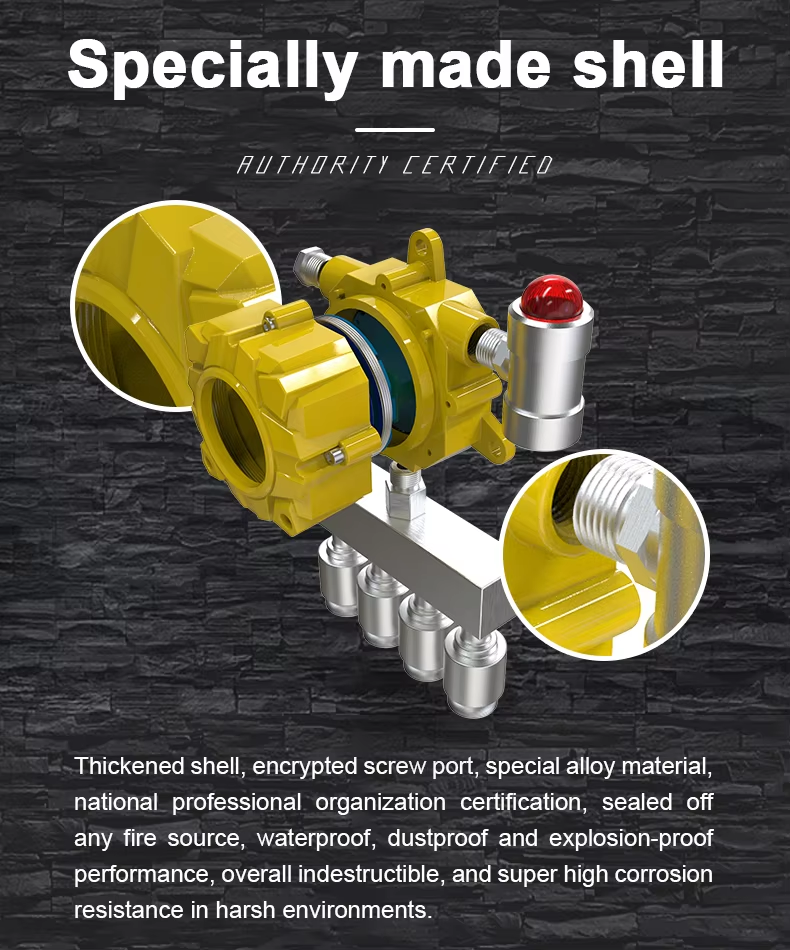

| Shell material | Aluminum |
| Dimensions | 200*180*90 mm(L*W*H) |
| Weight | 2.6kg |
| Common Gases Parameter Listing | ||||
| Description | Range | Resolution | L-alarm | H-alarm |
| CO | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| O2 | 0-30%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
| H2 | 0-1000ppm | 1ppm | 50ppm | 150ppm |
| H2S | 0-100ppm | 0.1ppm | 10ppm | 20ppm |
| CH4 | 0-100%LEL | 1%LEL | 20%LEL | 50%LEL |
| C2H4O | 0-100ppm | 1/0.1ppm | 20ppm | 50ppm |
| EX | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C3H8 | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| C2H5OH | 0-100%LEL | 1%LEL/1%VOL | 20%LEL | 50%LEL |
| NH3 | 0-100ppm | 0.1/1ppm | 20ppm | 50ppm |
| CL2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| O3 | 0-10ppm | 0.1ppm | 2ppm | 5ppm |
| SO2 | 0-20ppm | 0.1/1ppm | 5ppm | 10ppm |
| PH3 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| CO2 | 0-5000ppm | 1ppm/0.1%VOL | 1000ppm | 2000ppm |
| NO | 0-250ppm | 1ppm | 50ppm | 150ppm |
| NO2 | 0-20ppm | 0.1ppm | 5ppm | 10ppm |
| HCN | 0-50ppm | 0.1/0.01ppm | 10ppm | 20ppm |
| HCL | 0-20ppm | 0.001/0.1ppm | 5ppm | 10ppm |
| CH2O | 0-20ppm | 1/0.1ppm | 5ppm | 10ppm |
| HF | 0-100ppm | 0.01/0.1ppm | 2ppm | 5ppm |
| C7H8/C8H10 | 0-20ppm | 0.01/0.1ppm | 5ppm | 10ppm |
| Remark | Not all gases and range are listed, if you need more information, please contact us. We can also provide OEM/ODM services upon request. |
|||
